Mast Signal Kits
Click on image for a hi-res image

Our Mast signals come in Four styles, PRR CPL's, B&O CPL's, Searchlights and Type "D" multiple light targets. Each kit will construct four Mast Signals which can have any number of targets on them. They can also be built with either one or two platforms. The mast is a super thin-walled tubing to allow the placement of LEDs behind the targets. TrainCat Model Sales is working very closely with Integrated Signal Systems in developing HO, N and Z modules that users can install themselves.

Searchlights 6-Pack w/ Cast Targets

Completely redesigned with closer to scale dimensions than ever. All new artwork and a plethora of castings. The Seachlight signals can be purchased with non-operating target castings or with color correct LED's fully assembled, wired and tested. Each signal can be built as a single or double target as comes with:
  • 12ea Targets
  • 6ea Short Positionable Bracket Arms
  • 12ea Long Positionable Bracket Arms
  • 6ea. Cast brass Bases
  • 6ea. Cast Foundations
  • 6ea. Ladders Assemblies (Platforms, Handrails & Standoffs)
  • 12ea Cast Pinnacles (6 Short & 6 Tall)
Standard Height Mast Signals Kits
Part # Ladder Type Targets Price
1300914 (N) Std Angled Dummy Resv

1300915 (N) Std Straight Dummy Resv
1300918 (N) Std Curved Dummy Resv
Extended Height Mast Signals Kits
Part # Ladder Type Targets Price
1300919 (N) Tall Curved Dummy Resv
1300920 (N) Tall Straight Dummy Resv
H-2 Signal Heads
Part # Targets Price
1309970 (N) Dummy Resv

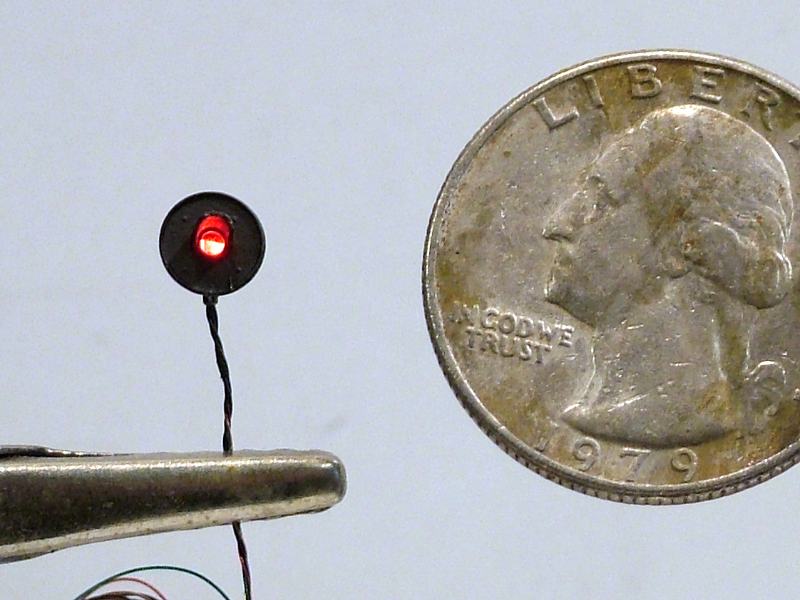

1309971 (N) Operating Tri-Color Resv




D-Type 6-Pack w/ Cast Heads

Completely redesigned with closer to scale dimensions than ever. All new artwork and a plethora of castings. The D-Type signals can be purchased with non-operating target castings or with color correct LED's fully assembled, wired and tested.

Each signal can be built as a single or double target as comes with:

  • 6ea 3-Aspect Targets
  • 6ea 2-Aspect Targets
  • 12ea Scale positionable Bracket Arms
  • 6ea. Cast brass Bases
  • 6ea. Cast Foundations
  • 6ea. Ladders Assemblies (Platforms, Handrails & Standoffs)
  • 12ea Cast Pinnacles (6 Short & 6 Tall)
Mast Signals Kits
Part # Ladder Targets Price
1300910 (N) Std Angled Std Dummy Resv

1300911 (N) Std Straight Std Dummy Resv

1300912 (N) Std Angled Hooded Dummy Resv

1300913 (N) Std Straight Hooded Dummy Resv

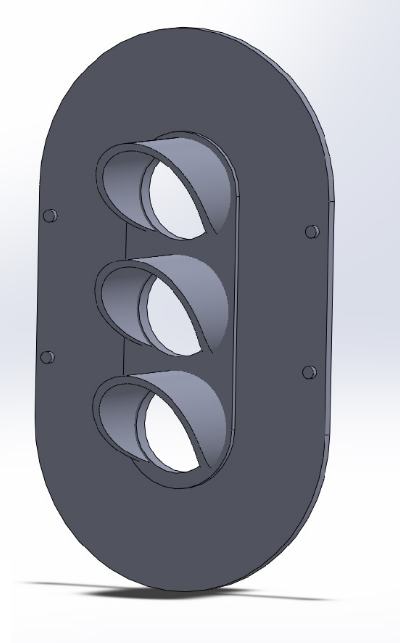

D-Type Signal Heads
Part # Aspects Targets Price
1309970 (N) 2 Std Dummy Resv
1309971 (N) 3 Std Dummy Resv
1309972 (N) 2 Hooded Dummy Resv
1309973 (N) 3 Hooded Dummy Resv

1309974 (N) 2 Std Operating Resv
1309975 (N) 3 Std Operating Resv
1309976 (N) 2 Hooded Operating Resv
1309977 (N) 3 Hooded Operating Resv







PRR CPL 4-Pack w/ Cast Targets
Completely redesigned with closer to scale dimensions than ever. All new artwork and a plethora of castings. The PRR signals can be purchased with non-operating target castings or with color correct LED's fully assembled, wired and tested.

Each signal comes with:

  • 4ea 7-Aspect Upper Quadrants (Dummy or Operating)
  • 4ea Scale PRR Bracket Arms
  • 4ea. Cast brass Bases
  • 4ea. Cast Foundations
  • 4ea. Ladders Assemblies (Platforms, Handrails & Standoffs)
  • 4ea Cast Pinnacles
Mast Signals Kits
Part # Targets Price
1300916 (N) Dummy Resv

1300917 (N) Assembled 7-LED CPL Resv
D-Type Signal Heads
Part # Targets Price
1309960 (N) Std Dummy Resv
1309971 (N) Assembled 7-LED CPL Resv


Signal Bases & Foundations
Cast Bases ready for installation to create the exact type of signal you need. All items come in 6-Packs.

Signal Bases
Part # Type Price

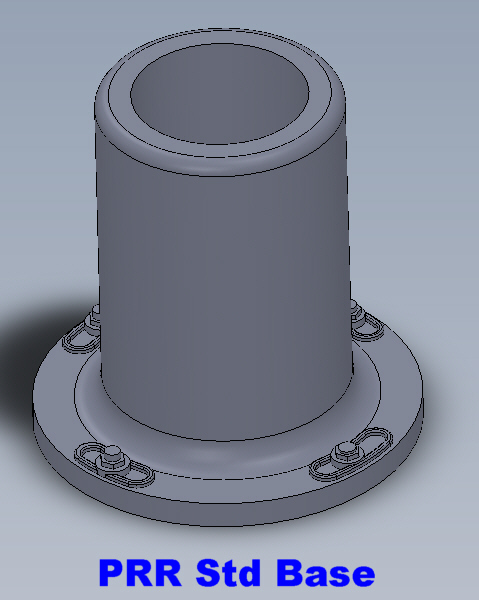

1309950 (N) PRR Standard Resv

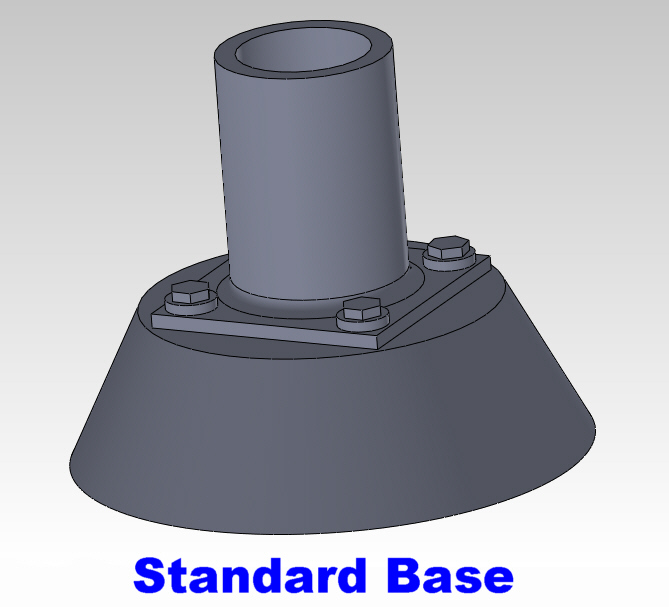

1309951 (N) Standard Base Resv

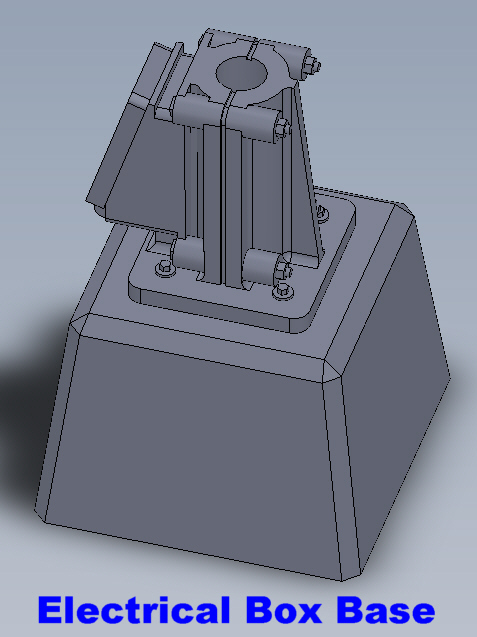

1309952 (N) Electrical Box Resv
1309953 (N) Single Relay Cabinet Resv

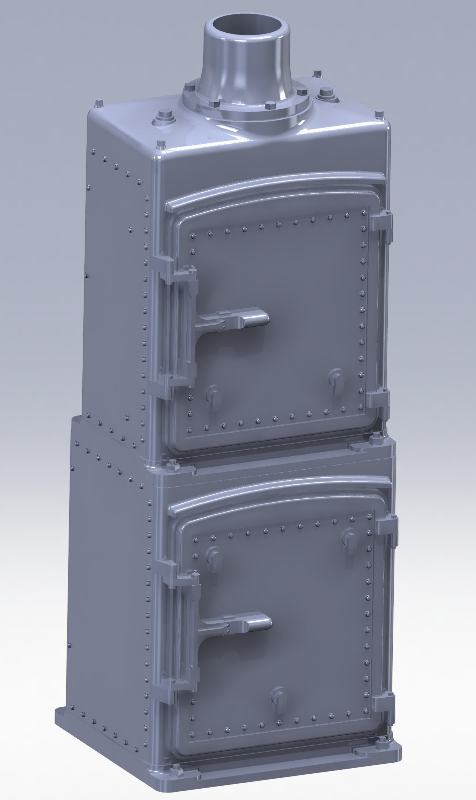

1309954 (N) Double Relay Cabinet Resv

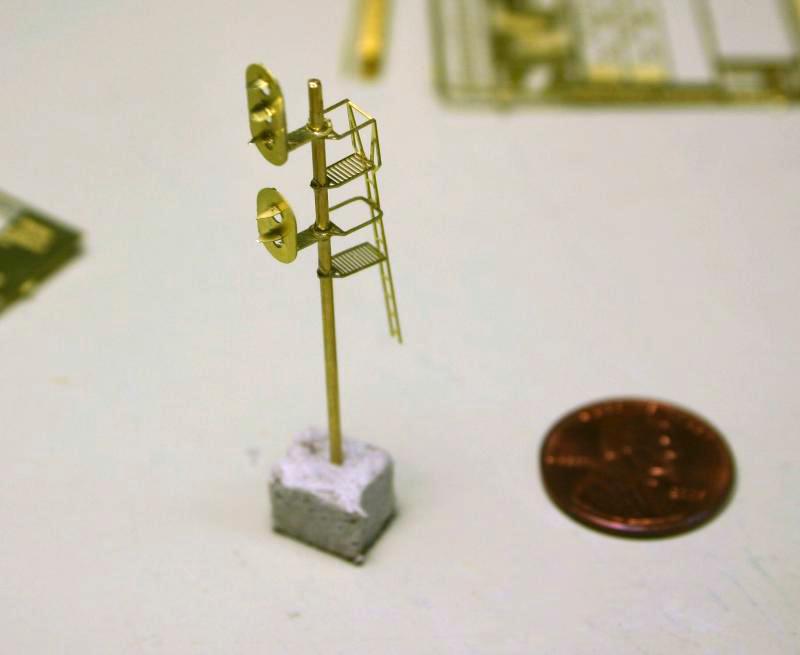

Type "D" 4-Pack (Old Version)

Comes with 6ea of 1, 2 & 3 light target heads that can be customized by the builder for their own application. Each mast can be built with either one or two platforms.

0300901(Z)   $11.95
1300901(N)  $13.95

Extra Targets are available with our Type D Target pack of 9ea of 1, 2 & 3 light targets.






Searchlight 4-Pack (Old Version)

Comes with 8ea of adjustable searchlight target heads that can be customized by the builder for their own application. Each mast can be built with either one or two platforms.

1300903(N)  $13.95

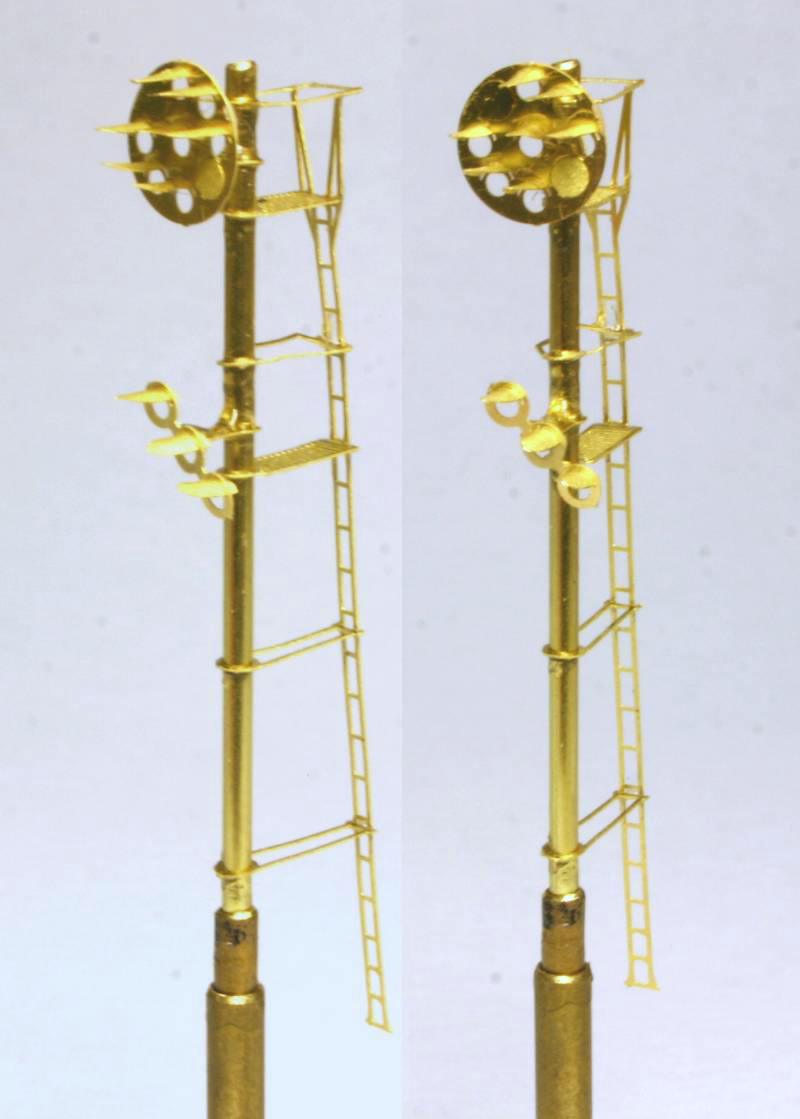

PRR CPL 4-Pack (Old Version)

Each set will construct four(4) Pennsy standard 7 light CPL mast signal with optional 3 light interlocker which can be mounted left to right or right to left. The kit comes complete with single or dual platform stairs.

1300904(N)    $22.95
2300904(HO)    $31.95

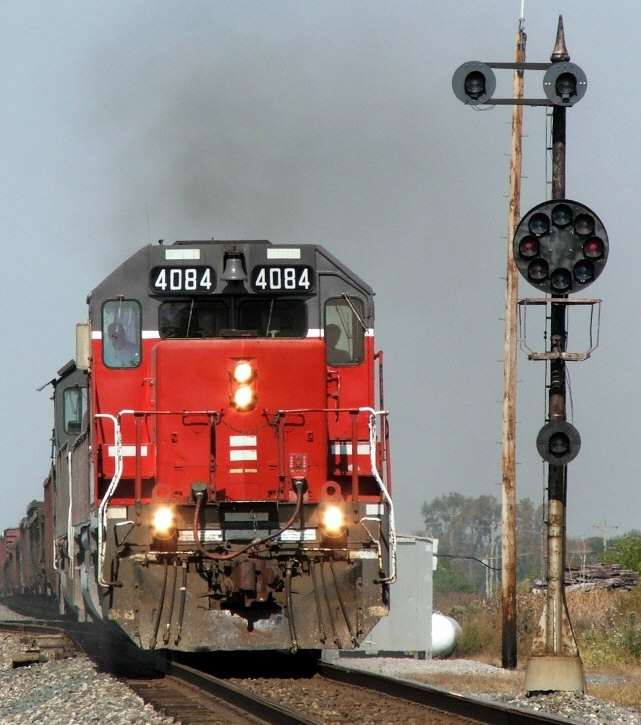

B&O CPL 4-Pack

Each set will construct four(4) B&O standard 8 light CPL mast signal. Also included are all necessary Sunshields,  Lunars, Staggered Markers and cover plates to make a 6 light CPLs. Each kit comes complete with prototypical platform and stairs.

1300905(N)    $22.95
2300905(HO)    Reserve








Copyright Chris Lastovich
TrainCat Model Sales. manufactures an extensive list of model railroad products in our Weston, Florida plant. Each product made in our plant ARE NOT TOYS, AND ARE NOT INTENDED FOR USE BY CHILDREN UNDER THE AGE OF 14. These products are Model Railroad Equipment and Accessories intended ONLY for use by adults. Adults should keep small parts associated with our kits from small children as they can be a choking hazard.

As part of our ongoing commitment to safety, TrainCat Model Sales does not make any products with lead and phthalate content.
Note: This document is preliminary. Items contained within may change without notice.
